Bullnose Bricks (Part 1)

Silvertown Tunnel Portal building at Grenwich with Ketley double bullnose bricks and recessed headers

This portal building at the new Silvertown Tunnel in London uses BN2 double bullnose bricks and recessed headers to create this striking facade. Image by Riverlinx CJV and Tfl

Group BN

All special bricks available in Staffordshire blue, brown brindle and red.

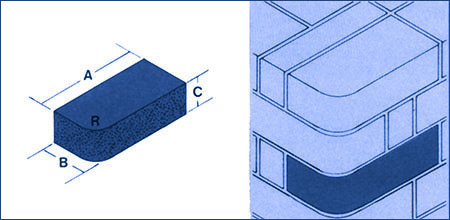

BN 1

Single bullnose

Type No.	A	B	C	R
BN 1.1	215	102	65	25
BN 1.2	215	102	65	51

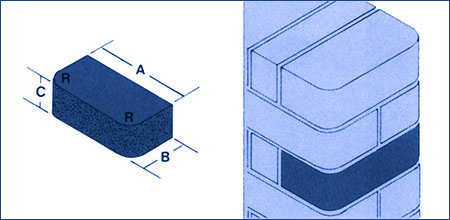

BN 2

Double bullnose

Type No.	A	B	C	R
BN 2.1	215	102	65	25
BN 2.2	215	102	65	51

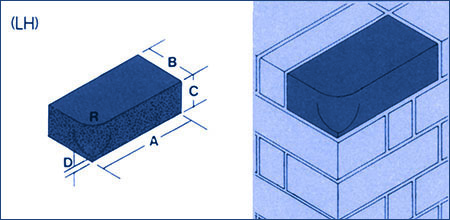

BN 3

Single bullnose stop (left and right hand)

Type No.	A	B	C	D	R
BN 3.1	215	102	65	25	25
BN 3.2	215	102	65	25	51

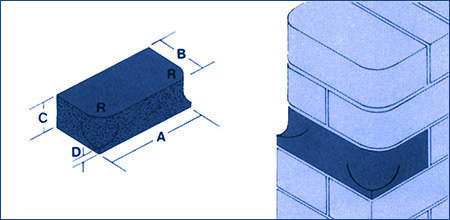

BN 4

Double bullnose stop (left and right hand)

Type No.	A	B	C	D	R
BN 4.1	215	102	65	25	25
BN 4.2	215	102	65	25	51

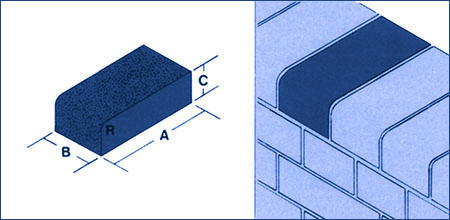

BN 5

Single bullnose header on flat

Type No.	A	B	C	R
BN 5.1	215	102	65	25
BN 5.2	215	102	65	51

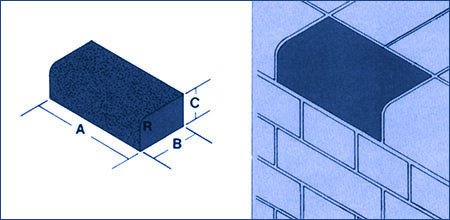

BN 6

Single bullnose stretcher on flat

Type No.	A	B	C	R
BN 6.1	215	102	65	25
BN 6.2	215	102	65	51

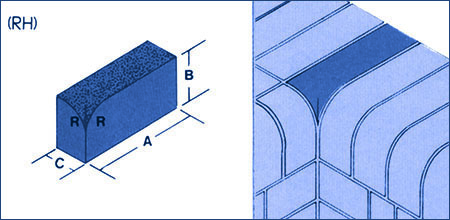

BN 7

Single bullnose internal return stretcher faced (L & R hand)

Type No.	A	B	C	R
BN 7.1	215	102	65	25
BN 7.2	215	102	65	51
BN 7.3	215	102	215	51
BN 7.4	215	102	215	51

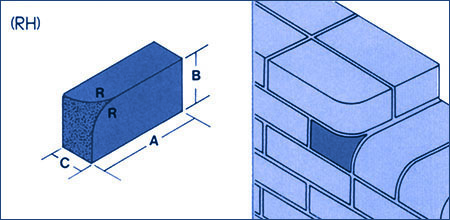

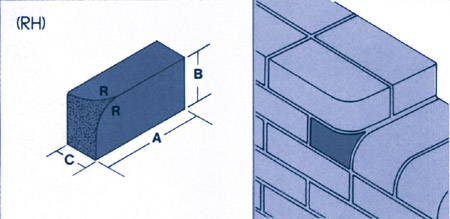

BN 8

Single bullnose internal return, header faced (L & R hand)

Type No.	A	B	C	R
BN 8.1	215	102	65	25
BN 8.2	215	102	65	51
BN 8.3	215	102	102	51
BN 8.4	215	102	102	51

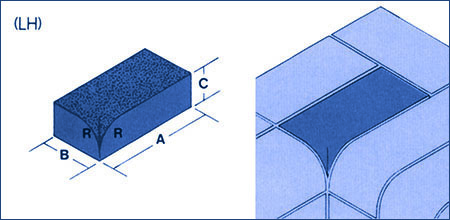

BN 9

bullnose internal return, flatfaced faced (L & R hand)

Type No.	A	B	C	R
BN 9.1	215	102	65	25
BN 9.2	215	102	65	51

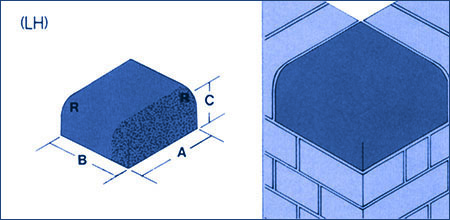

BN 10

bullnose external return on edge (L & R hand)

Type No.	A	B	C	R
BN 10.1	215	65	102	25
BN 10.2	215	65	102	51
BN 10.3	215	215	102	25
BN 10.4	215	215	102	51

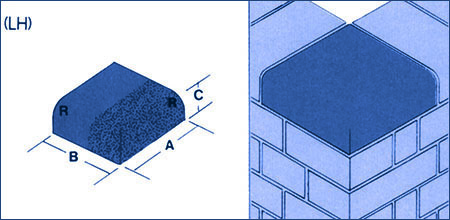

BN 11

Bullnose external return on flat (L & R hand)

Type No.	A	B	C	R
BN 11.1	215	102	65	25
BN 11.2	215	102	65	51
BN 11.3	215	215	65	25
BN 11.4	215	215	65	51

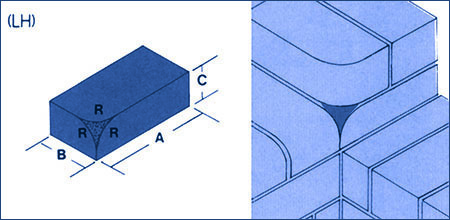

BN 12

bullnose mitre (L & R hand)

Type No.	A	B	C	R
BN 12.1	215	102	65	25
BN 12.2	215	102	65	51
