Bullnose Bricks (Part 2)
This wall at Dreadnought Works uses special double bullnose bricks as a feature.
Group BN
All special bricks available in Staffordshire blue, brown brindle and red.

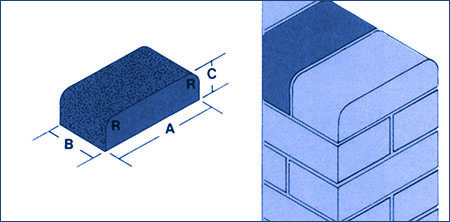

BN 13
Bullnose double header on flat
| Type No. | A | B | C | R |
| BN 13.1 | 215 | 102 | 65 | 25 |
| BN 13.2 | 215 | 102 | 65 | 51 |

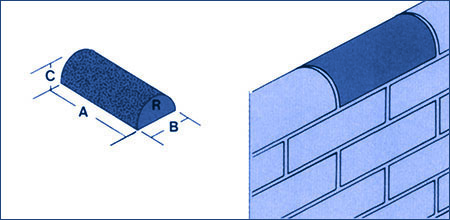

BN 14
Bullnose double stretcher on flat
| Type No. | A | B | C | R |
| BN 14.1 | 215 | 102 | 65 | 25 |
| BN 14.2 | 215 | 102 | 65 | 51 |

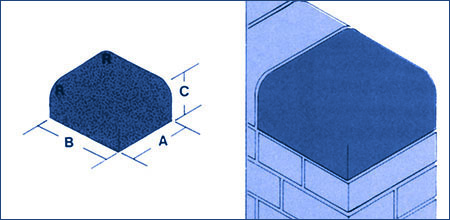

BN 15
Stop end to double bullnose on edge
& to bullnose double header on flat (square corners on bed)
| Type No. | A | B | C | R |
| BN 15.1 | 215 | 159 | 102 | 25 |
| BN 15.2 | 215 | 159 | 102 | 51 |
| BN 15.3 | 215 | 215 | 102 | 25 |
| BN 15.4 | 215 | 215 | 102 | 51 |
| BN 15.5 | 215 | 159 | 65 | 25 |
| BN 15.6 | 215 | 159 | 65 | 51 |
| BN 15.7 | 215 | 215 | 65 | 25 |
| BN 15.8 | 215 | 215 | 65 | 51 |

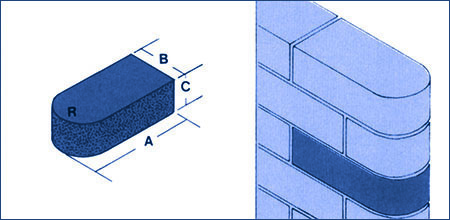

BN 16
Cownose
| Type No. | A | B | C | R |
| BN 16.1 | 215 | 102 | 65 | 25 |
| BN 16.2 | 215 | 102 | 65 | 51 |

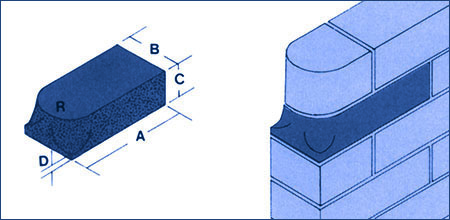

BN 17
Cownose stop
| Type No. | A | B | C | R |
| BN 17.1 | 215 | 102 | 65 | 25 |
| BN 17.2 | 215 | 102 | 65 | 51 |

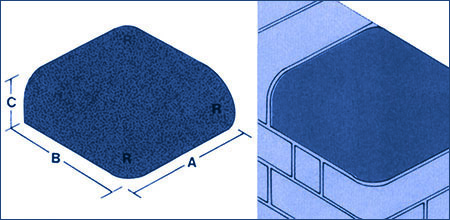

BN 18
Stop end to double bullnose on edge and to bullnose double header on flat(rounded corners on bed)
| Type No. | A | B | C | R |
| BN 18.1 | 215 | 159 | 102 | 25 |
| BN 18.2 | 215 | 159 | 102 | 51 |
| BN 18.3 | 215 | 215 | 102 | 25 |
| BN 18.4 | 215 | 215 | 102 | 51 |
| BN 18.5 | 215 | 159 | 65 | 25 |
| BN 18.6 | 215 | 159 | 65 | 51 |
| BN 18.7 | 215 | 215 | 65 | 25 |
| BN 18.8 | 215 | 215 | 65 | 51 |

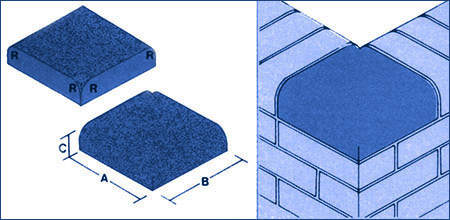

BN 19
External return to double bullnose on edge and to bullnose double header on flat (square corners on bed)
| Type No. | A | B | C | R |
| BN 19.1 | 215 | 215 | 102 | 25 |
| BN 19.2 | 215 | 215 | 102 | 51 |
| BN 19.3 | 215 | 215 | 65 | 25 |
| BN 19.4 | 215 | 215 | 65 | 51 |

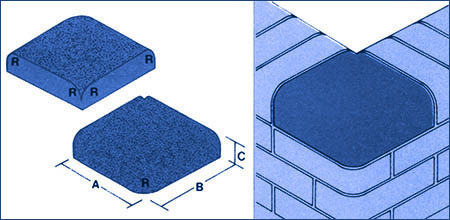

BN 20
External return to double bullnose on edge and to bullnose double header on flat (rounded corners on bed)
| Type No. | A | B | C | R |
| BN 20.1 | 215 | 215 | 102 | 25 |
| BN 20.2 | 215 | 215 | 102 | 51 |
| BN 20.3 | 215 | 215 | 65 | 25 |
| BN 20.4 | 215 | 215 | 65 | 51 |

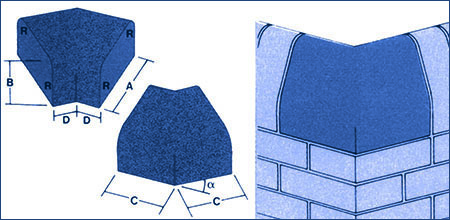

BN 21
Double bullnose external angle to double bullnose on edge and to bullnose double header on flat
| Type No. | A | B | C | D | R | µ |
| BN 21.1 | 215 | 102 | 159 | 101 | 25 | 30o |
| BN 21.2 | 215 | 102 | 159 | 101 | 51 | 30o |
| BN 21.3 | 215 | 65 | 159 | 101 | 25 | 30o |
| BN 21.4 | 215 | 65 | 159 | 101 | 51 | 30o |
| BN 21.5 | 215 | 102 | 159 | 70 | 25 | 45o |
| BN 21.6 | 215 | 102 | 159 | 70 | 51 | 45o |
| BN 21.7 | 215 | 65 | 159 | 70 | 25 | 45o |
| BN 21.8 | 215 | 65 | 159 | 70 | 51 | 45o |
| BN 21.9 | 215 | 102 | 159 | 35 | 25 | 60o |
| BN 21.10 | 215 | 102 | 159 | 35 | 51 | 60o |
| BN 21.11 | 215 | 65 | 159 | 35 | 25 | 60o |
| BN 21.12 | 215 | 65 | 159 | 35 | 51 | 60o |
