Plinth Bricks

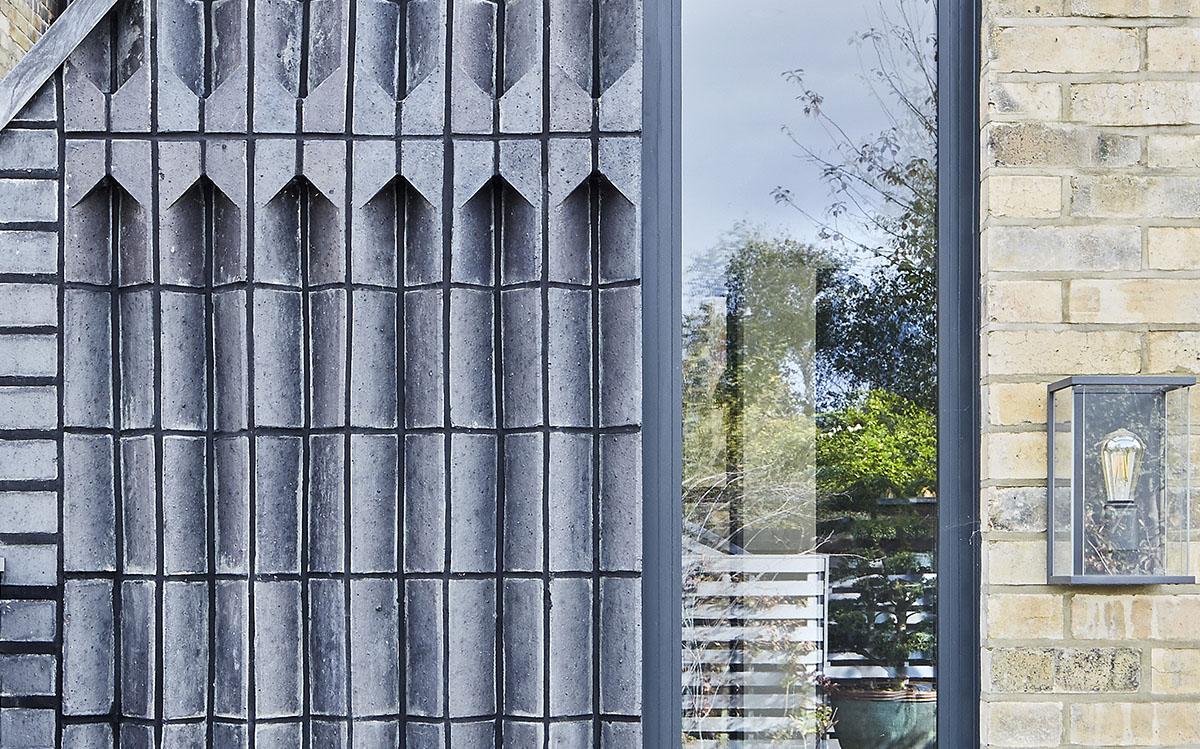

In the above image plinth bricks are used in an unusual but inspiring way to create a feature wall for a high end property.
Group PL
All special bricks available in Staffordshire blue, brown brindle and red.

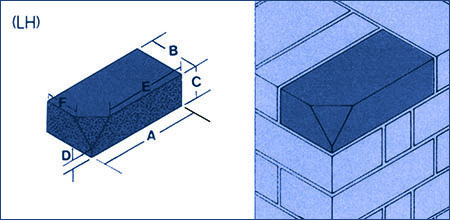

PL 1
Plinth stop or cant stop (left or right hand)
Type No. | A | B | C | D | E | F |
PL 1.1 | 215 | 102 | 65 | 9 | 159 | 46 |
PL 1.2 | 215 | 102 | 65 | 23 | 173 | 60 |

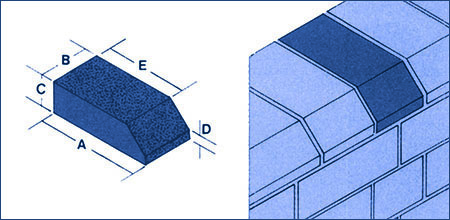

PL 2
Plinth header
Type No. | A | B | C | D | E |
PL 2.1 | 215 | 102 | 65 | 9 | 159 |
PL 2.2 | 215 | 102 | 65 | 23 | 173 |

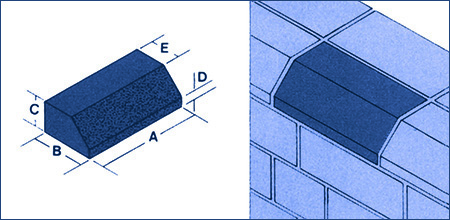

PL 3
Plinth stretcher
Type No. | A | B | C | D | E |
PL 3.1 | 215 | 102 | 65 | 9 | 46 |
PL 3.2 | 215 | 102 | 65 | 23 | 60 |

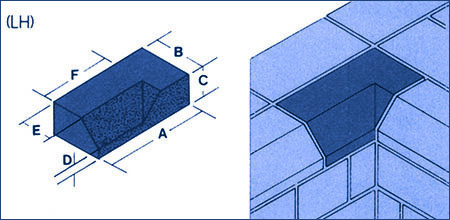

PL 4
Plinth internal return (long) (left or right hand)
Type No. | A | B | C | D | E | F |
PL 4.1 | 215 | 102 | 65 | 9 | 46 | 169 |
PL 4.2 | 215 | 102 | 65 | 23 | 60 | 155 |

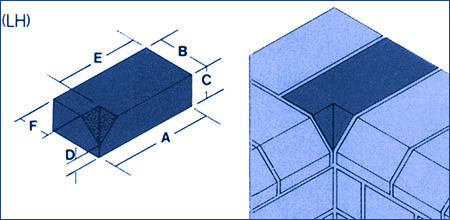

PL 5
Plinth internal return (short) (left or right hand)
Type No. | A | B | C | D | E | F |
PL 5.1 | 215 | 102 | 65 | 9 | 159 | 46 |
PL 5.2 | 215 | 102 | 65 | 23 | 173 | 60 |

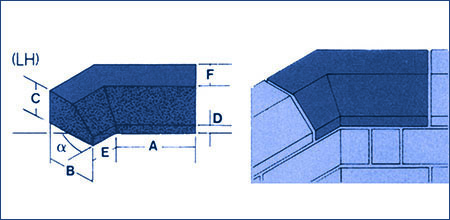

PL 6
Plinth internal angle (left or right hand)
|
PL 6.13 | 2152) | 102 | 65 | 9 | 102 | 46 | 30° |
PL 6.14 | 2152) | 102 | 65 | 23 | 102 | 60 | 30° |
PL 6.15 | 2152) | 102 | 65 | 9 | 102 | 46 | 45° |
PL 6.16 | 2152) | 102 | 65 | 23 | 102 | 60 | 45° |
PL 6.17 | 2152) | 102 | 65 | 9 | 102 | 46 | 60° |
PL 6.18 | 2152) | 102 | 65 | 23 | 102 | 60 | 60° |
1) Suitable for quarter bond without cutting
2) Suitable for half bond without cutting

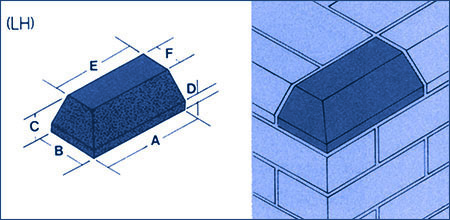

PL 7
Plinth external return (left or right hand)
Type No. | A | B | C | D | E | F |
PL 7.1 | 215 | 102 | 65 | 9 | 159 | 46 |
PL 7.2 | 215 | 102 | 65 | 23 | 173 | 60 |

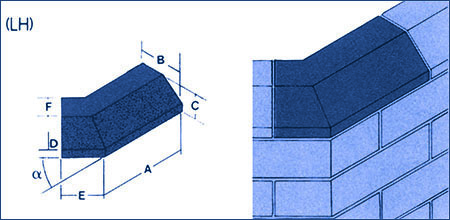

PL 8
Single cant internal return with internal mitre (square external corner on bed)
Type No. | A | B | C | D | E | F | α |
PL 8.1 | 1591) | 102 | 65 | 9 | 102 | 46 | 30o |
PL 8.2 | 1591) | 102 | 65 | 23 | 102 | 60 | 30o |
PL 8.3 | 1591) | 102 | 65 | 9 | 102 | 46 | 45o |
PL 8.4 | 1591) | 102 | 65 | 23 | 102 | 60 | 45o |
PL 8.5 | 1591) | 102 | 65 | 9 | 102 | 46 | 60o |
PL 8.6 | 1591) | 102 | 65 | 23 | 102 | 60 | 60o |
PL 8.7 | 2151) | 102 | 65 | 9 | 102 | 46 | 30o |
PL 8.8 | 2151) | 102 | 65 | 23 | 102 | 60 | 30o |
PL 8.9 | 2151) | 102 | 65 | 9 | 102 | 46 | 45o |
PL 8.10 | 2151) | 102 | 65 | 23 | 102 | 60 | 45o |
PL 8.11 | 2151) | 102 | 65 | 9 | 102 | 46 | 60o |
PL 8.12 | 2151) | 102 | 65 | 23 | 102 | 60 | 60o |
Note:
1) Suitable for quarter bond without cutting
2) Suitable for half bond without cutting

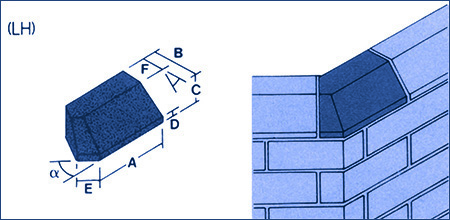

PL 9
Plinth squint(left or right hand)
Type No. | A | B | C | D | E | F | α |
PL 9.1 | 164 | 102 | 65 | 9 | 51 | 46 | 30o |
PL 9.2 | 164 | 102 | 65 | 23 | 51 | 60 | 30o |
PL 9.3 | 164 | 102 | 65 | 9 | 51 | 46 | 45o |
PL 9.4 | 164 | 102 | 65 | 23 | 51 | 60 | 45o |
PL 9.5 | 164 | 102 | 65 | 9 | 51 | 46 | 60o |
PL 9.6 | 164 | 102 | 65 | 23 | 51 | 60 | 60o |
