Staffordshire red extruded brick slips
Available in a Smooth, Sanded & Textured

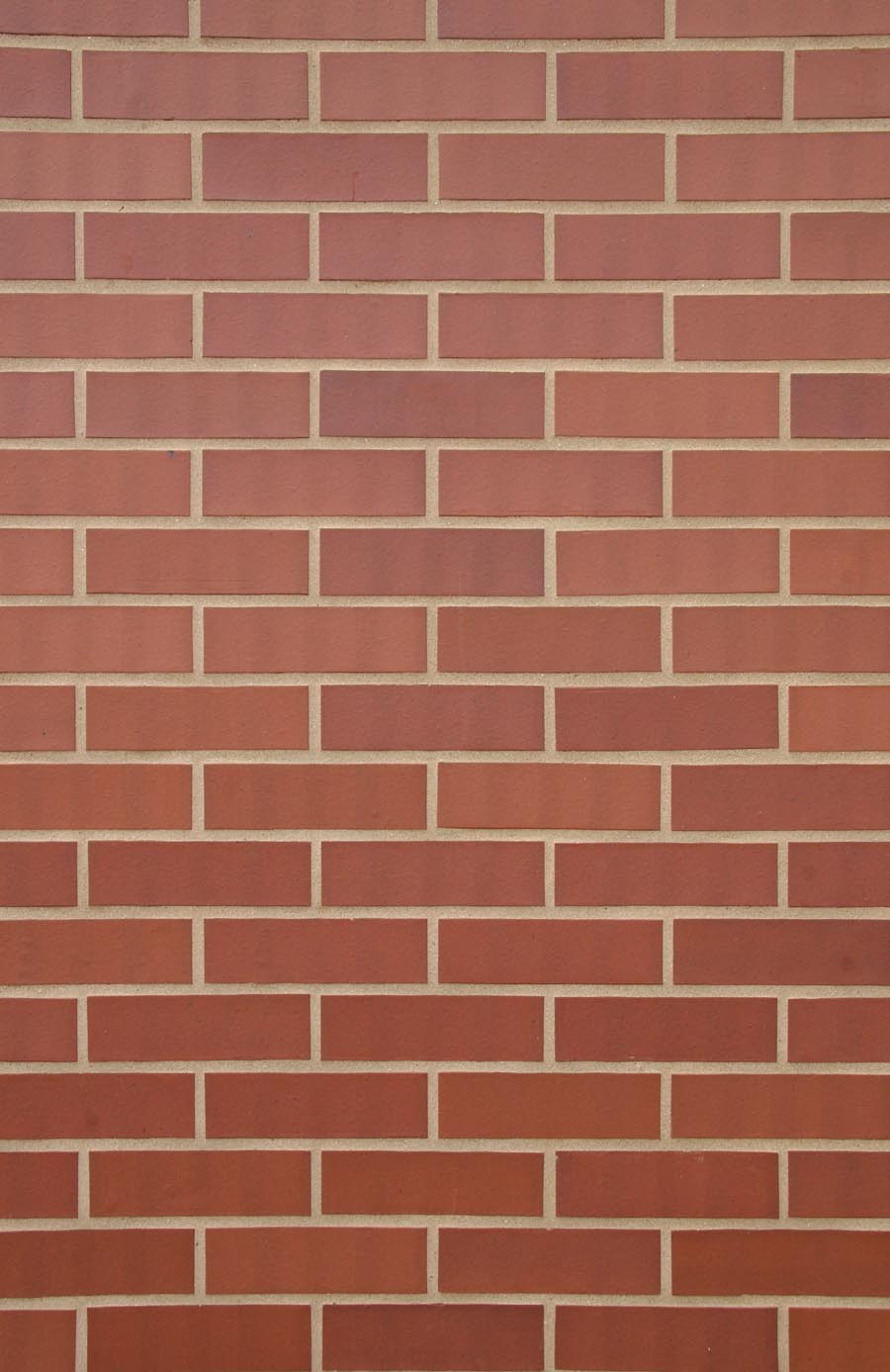

Staffs red smooth
Staffs red sanded
Staffs red textured
Ketley extruded Staffordshire Red brick slips eliminate the need and cost to cut down bricks for use with pre-fabricated panels and other cladding solutions. They can be used in combination with Ketley class A Staffordshire Red bricks and specials as they are made in the same plant, using the same clay and firing techniques.
This offers flexibility to architects and designers to use the most cost effective materials for the project without compromising on appearance or requiring cutting. Ketley Brick Slips use only 30% of the embodied carbon of a traditional cut brick. They are a highly durable, sustainable and cost effective choice for construction.

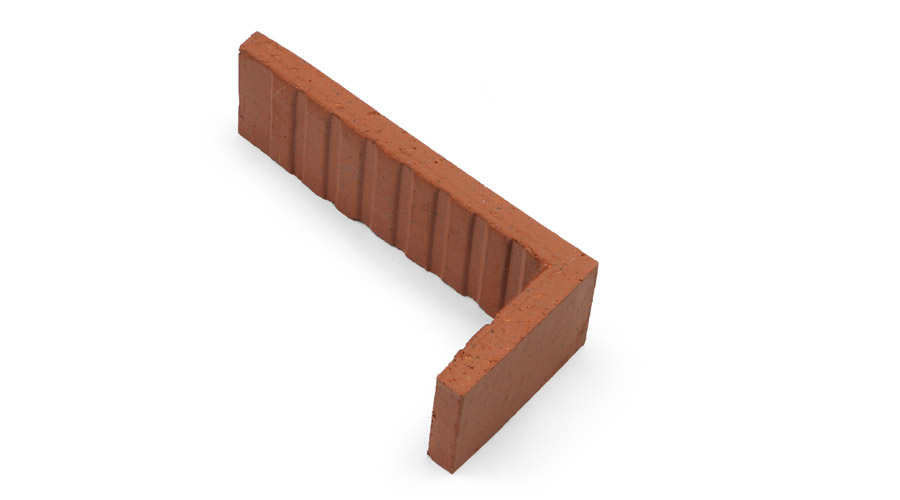

Extruded pistol bricks for corners and returns are also manufactured to complement the range of brick slips, and they are fired alongside the slips to ensure consistancy of colour.
Case Studies

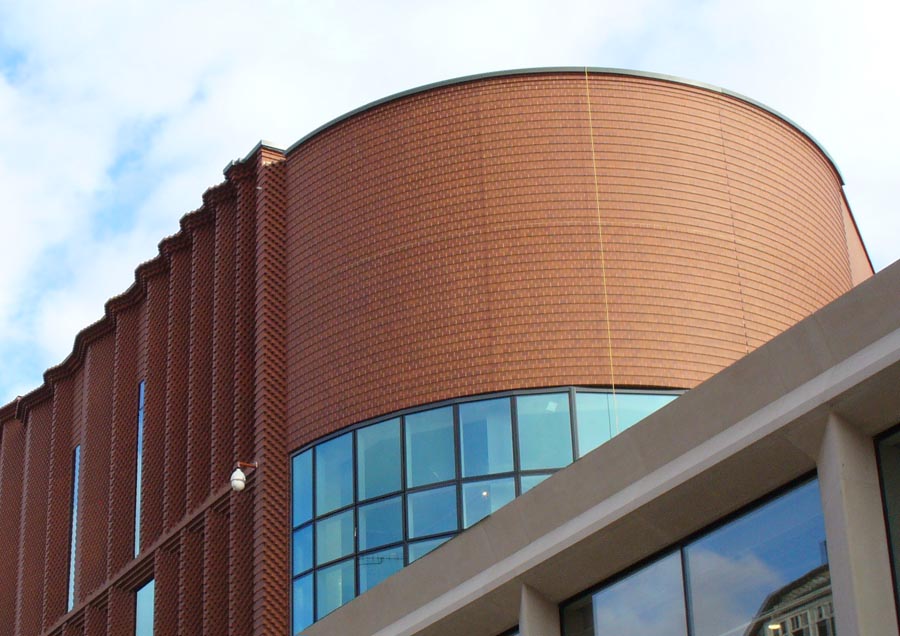

Victoria Gate Arcade In Leeds
Winner of 2 2017 Brick awards
A blend of light and dark red Ketley brick slips have been used in conjunction with a range of bespoke Ketley Class A red bricks to create a stunning brick facade for the new Victoria Gate Arcade in Leeds. The precast panels, both brick slips and special bricks were built by Thorp Precast. For More details>>
Environmental
Place of Manufacture: Brierley Hill, UK
Environmental Management: 14001 Download Certificate
Quality Management : 9001 Download Certificate
Download the Ketley Quality and Environmental Policy
Life Cycle: BRE Global Certification in accordance with EN 15804:2012 Download Certificate
Energy: Fired in gas kilns to 1130o C
Raw materials: Etruria Marl Clay from our own quarry in Cannock, 12 miles from our factory, and sand
Lifespan: Bricks are long life building product and Ketley's bricks are the toughest and most durable bricks you can buy.
Recyclability: Mortar can be cleaned off so the bricks can be reused. They can also be crushed and used as aggregate and/or as an inert bulk fill
Packaging: We keep packaging to a minimum using wooden pallets and we do not shrink wrap our brick packs.
Find out more about Ketley's approach to sustainability
Click for the Brick Development Association infographic on Sustainability of Brick
See below the latest video about Sustainability of Brick from the Brick Development Association
Technical Spec
Ketley Extruded Brick Slips
Standard: BS EN 771-1: 2011
Ketley Brick Slips are manufactured from the same clay, using the same processes as the Ketley Class A Engineering bricks and Dreadnought Roof Tiles to deliver the same technical characteristics of very low water absorption, very high strength and unrivalled frost resistance.
Download Specification Sheet as a pdf
Download Specification clause as a word doc
|
Type: |
Extruded Brick Slips |
|
Colour: |
Staffs Blue / Staffs Brown Brindle / Staffs Red / Staffs Red Blue / Staffs Light Multi / Staffs Dark Multi / |
|
Texture: |
Smooth / Sandfaced / Textured / Dragwire |
|
Manufacture: |
Extruded |
|
Dimensions: |
215 x 65mm x 18mm 215 x 65mm x 15mm |
|
Reverse Key |
Ribbed key to a depth of <1mm or Dovetail (for pre cast concrete applications) key depth 4.5mm |
|
Weight 18mm: |
0.57 kgs per slip |
|
Weight 15mm: |
0.45 kgs per slip |
| Water Absorption | ≤4.5% |
| Durability | F2 (Frost Resistant) |
|
Dimensional Tolerance Mean |
T2 |
| Dimensional Tolerance Range | R1 |
| Fire Reaction | A1 |
| Soluble Salt | S2 |
| Net Dry Density | 2200 kg/m3 = (Typically) |
| No. per m2 (10mm joints): | 60 |
|
Packing: |
Banded for fork lift off-loading. |
|
Quantity on a pallet 18mm |
1890 pieces Weight 1100kg or 1650 pieces Weight 950kg (for delivery by courier) |
|
Quantity on a pallet 15mm |
2170 pieces Weight 1000kg |
|
Special Bricks |
A complete range of Special Shapes to BS 4729 2005 is available. We also undertake the manufacture of 'non-standard' specials to customers' specification as required. |
Application Guide
Ketley Brick slips can be mounted in various ways and are suitable for use in external or internal applications. Slips can be incorporated into backing panels either with or without insulation. They can also be used for pre-fabricated arches, bay windows and chimneys.
Fixing using adhesive
Advice should be sought on the adhesive to be used for fixing brick slips from adhesive and backing panel manufacturers. Sand and cement mortars are not recommended. Please refer to adhesive manufacturer technical services to determine the correct adhesive for the application. Support will be required for the brick slips until the adhesive has set.
The thickness of the adhesive will depend on the application and backing substrate, generally the thickness of the adhesive will need to be between 6-12mm. Some systems will require the adhesive to be buttered on the back of the slips, other systems work with the adhesive applied with a gun. Specific advice must be sought from the backing panel manufacturer.
Pointing should take place once the adhesive has set. It is also important that both vertical and horizontal movement joints are considered and compressive joints incorporated into the design.
Download Elastic Slip Adhesive Information
Download Epoxy Slip Adhesive information

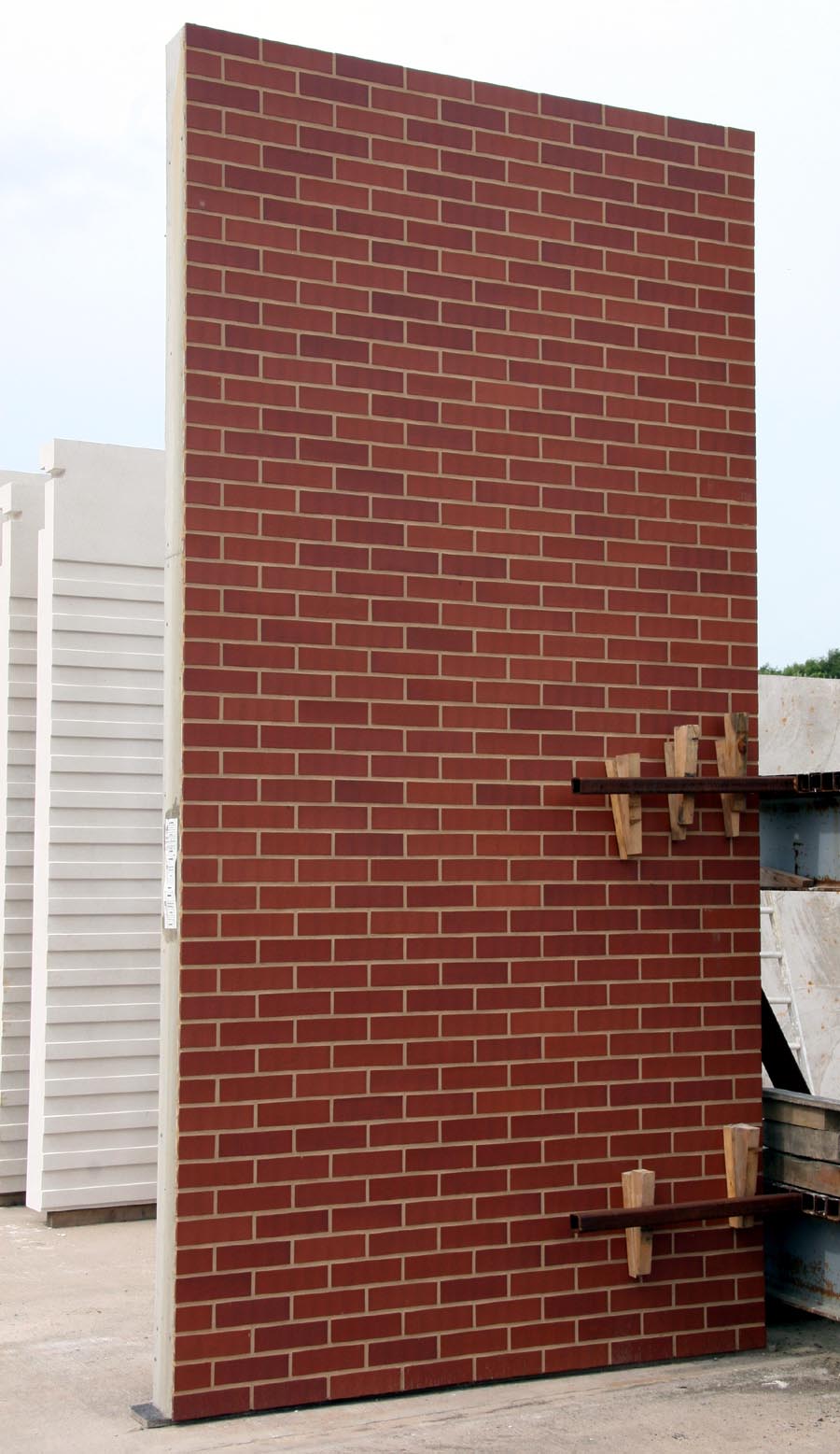

Pre-cast Concrete Panels
For pre-cast concrete panels Ketley brick slips are available with a 4.5mm deep dovetail key in the back to provide additional security to the adhesion of the slip to the concrete panel. The dovetail key will allow the concrete to set within the body of the brick slip providing an additional lock that will bind the slip to the panel. Contact us for further details.
