Transition units

Group PTR

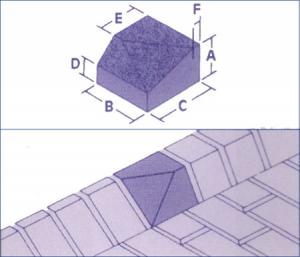

PTR.1.0

Transition unit

∆           A            B           C          D           E            F

---

mm     125        160        160        65        100       20

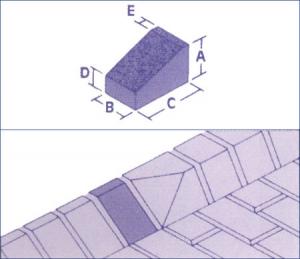

PTR.2.0

Crossover unit

∆            A           B           C          D          E

---

mm     125        100        160        65        20

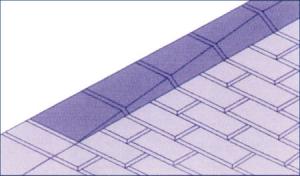

Purpose laid cant kerb

Transition set

Dimensions and format to suit individual requirements
